Concealed Threat Detection

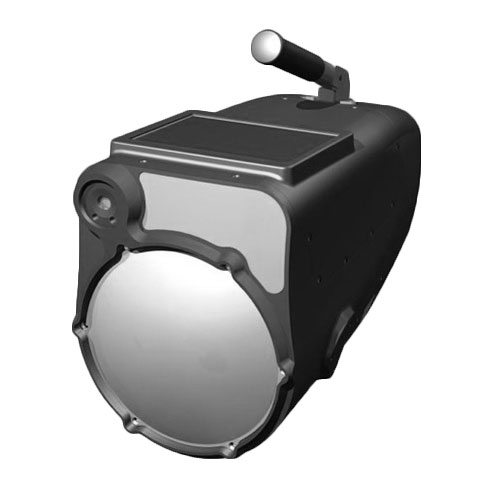

MiRTLE 10

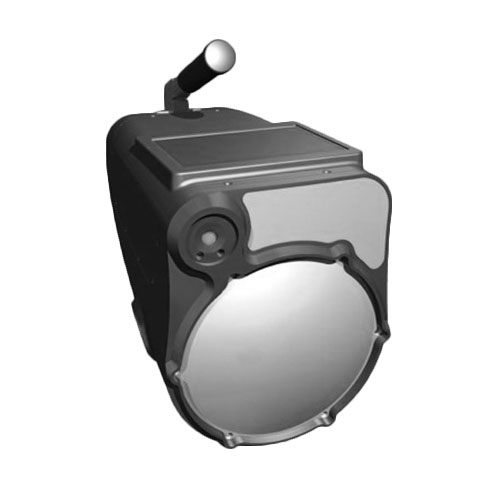

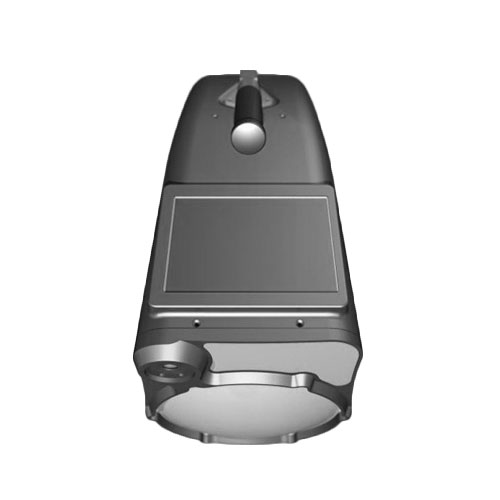

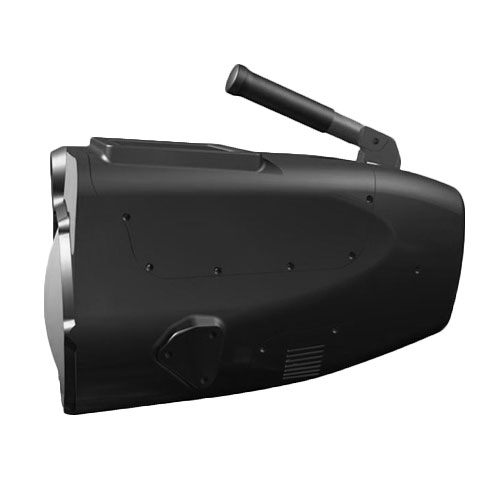

MiRTLE 10 is a handheld, screening device that uses a millimeter wave radio technique to detect threat materials or objects concealed under clothing up to 10 metres from the operator. By illuminating the target subject with low power, Ultra Wide Band (UWB) millimeter wave energy and analyzing the reflected waveform, the specific nature of the concealed object or material is determined. Because real threats objects such as handguns or concealed explosive devices present different radio signatures than benign objects like mobile phone hand-sets or keys, MiRTLE 10 will alert the operator only to real threats, eliminating confusion from false alarms. MiRTLE 10 is manually aimed by the operator toward a single target subject. This facilitates, non-contact, screening at stand-off ranges. The operator is simply alerted by a color coded indicator display thereby eliminating any operator decision to make “a threat/no threat” decision. Screening is done in real time, and no images are displayed to compromise the privacy of the target subject.

MiRTLE 10 MiRTLE 10 MiRTLE 10 MiRTLE 10

Unique Concealed Threat Detection

Unlike its competitors, MiRTLE uses a very low power, ultra wide band millimeter-wave radio to interrogate personnel for concealed weaponry. Radio has advantages over passive imagery as this modality is unaffected by environmental conditions and allows a greater stand-off distance. The system produces excellent detection rates for Person Borne Improvised Explosive Devices, handguns and knives. Using advanced software, MiRTLE removes the need for user interpretation and provides an autonomous Threat/No Threat decision in real time. A miniature video camera allows the operator to identify the location of potential threats with ease. Benign items such as keys and mobile phones are classified as harmless by the software.

Key Features

  • Stand-off range between system and target of up to 10 meters
  • Wired or wireless remote operation between operator and system
  • Real time threat indication
  • Autonomous Threat/No Threat decision
  • Indoor and outdoor operation
  • Truly non-invasive as no revealing imagery captured
  • Reliable detection of wide spectrum of threats with discrimination of benign items
  • Entirely safe with a power output 0.1% of a typical cell phone

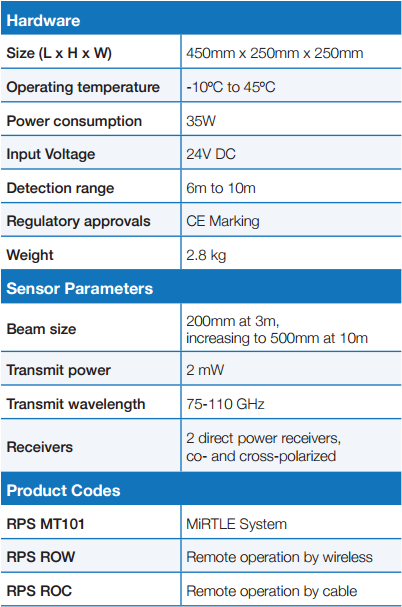

    MiRTLE 10 specs

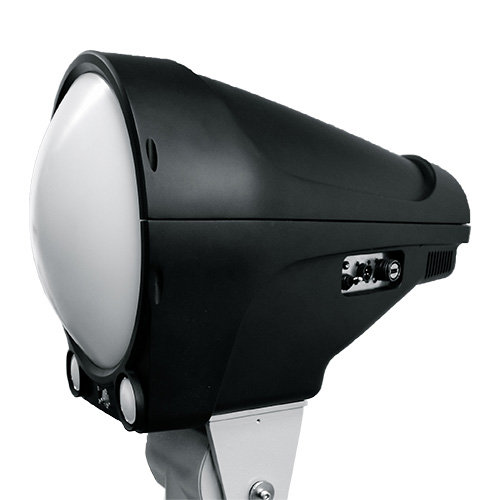

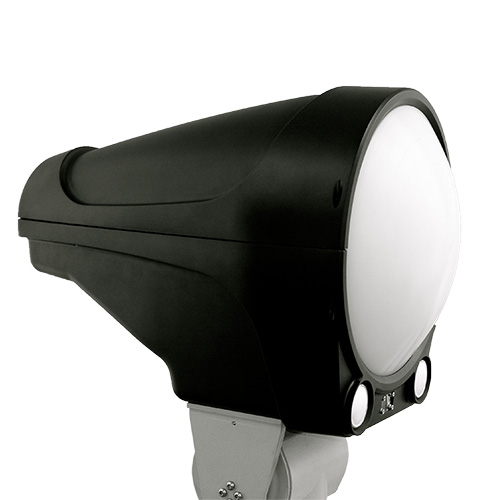

    MiRTLE 30

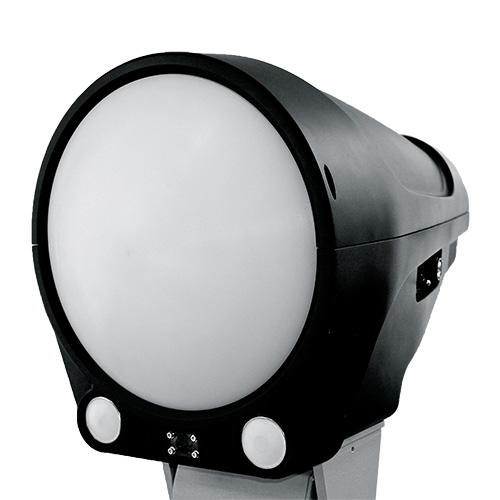

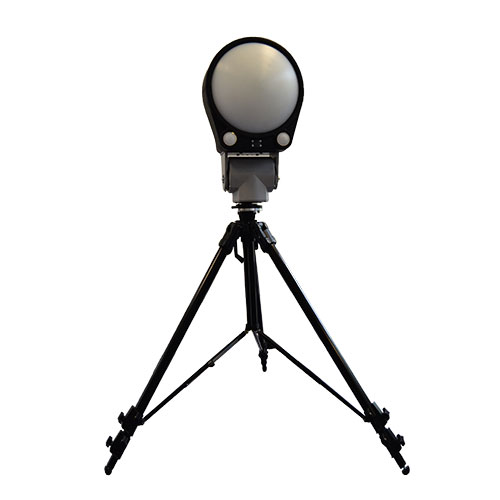

    MiRTLE 30 is a larger, longer range variant of MiRTLE 10. Portable but typically tripod mounted, MiRTLE is manually aimed at target subjects to reliably detect threats at ranges of up to 30 meters. Like MiRTLE 10, the system is entirely autonomous with the operator alerted to a threat or non-threat condition through an unambiguous color coded cursor and/or audible signal. Detection is rendered in real time, with typical detection time of ~ 1 second.

    MiRTLE 30 MiRTLE 30 MiRTLE 30 MiRTLE 30

    Unique Concealed Threat Detection

    Unlike its competitors, MiRTLE uses a very low power, ultra wide band millimeter-wave radio to interrogate personnel for concealed weaponry. Radio has advantages over passive imagery as this modality is unaffected by environmental conditions and allows a greater stand-off distance. The system produces excellent detection rates for Person Borne Improvised Explosive Devices, handguns and knives. Using advanced software, MiRTLE removes the need for user interpretation and provides an autonomous Threat/No Threat decision in real time. A miniature video camera allows the operator to identify the location of potential threats with ease. Benign items such as keys and mobile phones are classified as harmless by the software.

    Key Features

  • Stand-off range between system and target of up to 30 meters
  • Wired or wireless remote operation between operator and system
  • Real time threat indication
  • Autonomous Threat/No Threat decision
  • Indoor and outdoor operation
  • Truly non-invasive as no revealing imagery captured
  • Reliable detection of wide spectrum of threats with discrimination of benign items
  • Entirely safe with a power output 0.1% of a typical cell phone

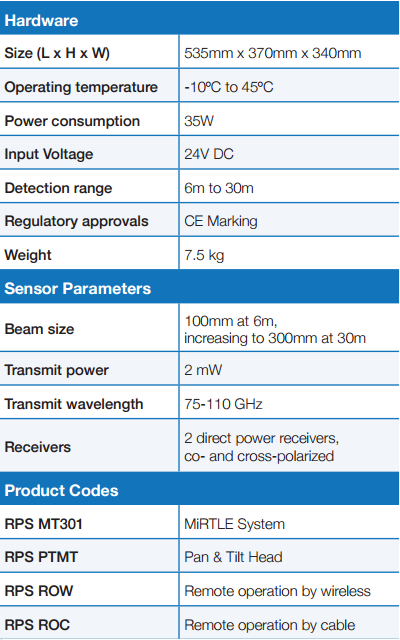

    MiRTLE 30 specs

    Price: Call for Pricing



    MiRTLE Applications

  • MiRTLE Line of Sight Crowd Screening

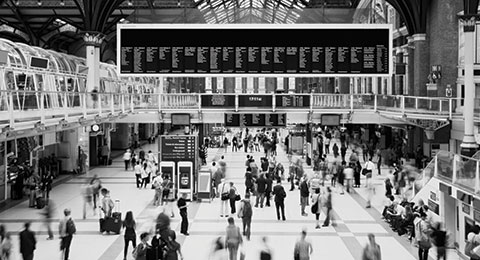

    Line of Sight Crowd Screening

    Screening of large groups with multiple sensors.

    MiRTLE Perimeter Screening

    Perimeter Screening

    Perimeter screening for high value locations.

    MiRTLE Security Checkpoints

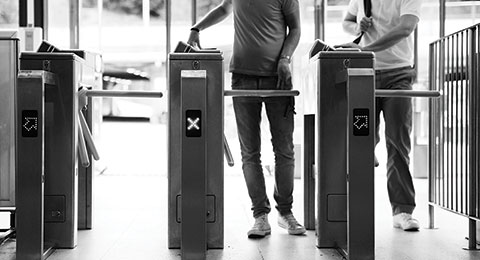

    Security Checkpoints

    High throughput screening.

    MiRTLE Transportation Screening

    Transportation

    Secondary screening, pre or post security.

    Counter Terror Devices Demo

    MiRTLE Live Demo on BBC
