"CCTA-1100 Digital Phone Analyzation"

The Only System in the World That Can Pinpoint Taps Anywhere Along Phone Lines

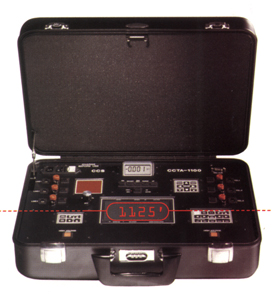

CCTA - 1100

The CCTA - 1100 is built to satisfy the demanding standards of the professional and has been specifically designed for search applications which require immediate detection and location of phone taps.

It is the only machine capable of pinpointing the exact location of a tap on your phone line. The 0-6000 Hz sweep test find any and all inductive and capacitance style telephone taps. The high voltage test is also capable of disabling foreign devices.

Test responses include LCD graph display and LCD readout that show telephone line parameters measured numerically, while LED display indicates if an unauthorized device is connected to the phone line.

The CCTA - 1100 represents the latest advancement in digital telephone analyzation technology. It is the only single device which provides a totally automatic method for detecting and locating bugs, wire taps, and other telephone line eavesdropping equipment.

Price: $45,000.00

SPECIFICATIONS

GENERAL:
PHYSICAL DIMENSIONS:
18" x 13" x 6"
457mm X 330mm x 152mm
[Length x Breadth x Depth]

POWER:
12v Rechargeable Battery
[Internal]

OPERATING TIME:
3 Hours Approx.
[When Fully Charged]

CHARGER:
110/220v AC

ENVIRONMENTAL OPERATING TEMP:
0c to +50c
+32F to +122F

TYPICAL TEMPERATURE:
15c to 60c
-4F to +140F

STORAGE TEMPERATURE:
-20c to +60c
-4F to +140F

HUMIDITY:
95% maximum relative humidity, non condensing

TDR TAP LOCATOR DISPLAY:
128x256 Dot-Matrix, Liquid Crystal Display [LCD] with electroliminescent backlighting.

HORIZONTAL RESOLUTION:
<2000ft [610 m]: <0.25ft [0.07m]
at 0.99 VOP; <0.07 ft [0.02 m] at
0.30 VOP; >2000ft [610 m]: 1ft
[0.10m] at any VOP

VERTICAL RESOLUTION:
17 bits with 93 dots
Displayed on the LCD.

WAVEFORM STORAGE:
All with full vertical resolution

STANDARD:
4 at 12,000 [samples/waveform]
8 at 6,000 [samples/waveform]
16 at 3,000 [samples/waveform]

OPTIONAL:
16 at 12,000 [samples/waveform]
32 at 6,000 [samples/waveform]
64 at 3,000 [samples/waveform]

DISTANCE ACCURACY:
+/- 0.5ft [0.15m] plus
+/- 0.01% of reading

MAXIMUM RANGE:
63,000ft [19,400m] at 0.99 VOP;
38,000ft [11,700m] at 0.60 VOP
[range varies with VOP] maximum
testable cable lengths vary with
pulse width & cable type

SERIAL I/O PORT:
RS-232

LED MONITOR:
20 x 20 LED array [red]

DVM DISPLAY RANGE AND RESOLUTION
VDC: 4000 mV, 4.000 V, 40.00 V,
400 V, 600 V

ACCURACY:
+/- 0.9% +1

VAC:
4000mV, 4.000V, 400V, 600V

ACCURACY:
+/- 1.9% +3

RESISTANCE:
400.0 ohms, 4,000 Kohms
40.00 Kohms, 400.0 Kohms
4,000 Mohms, 40.00 Mohms

ACCURACY:
+/- 0.9% +1

CAPACITANCE:
1F, 10F, 100F,
1000F, 10,000F

ACCURACY:
+/- 1.9% +2
