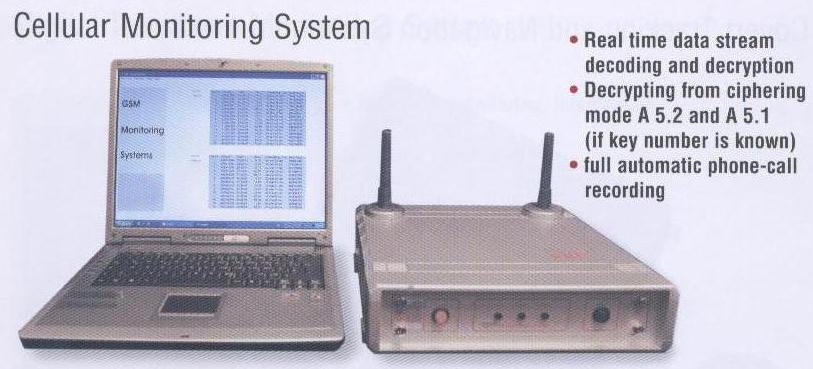

The ELE-1500 Pro Cellular Monitoring System can be provided
as a mobile or stationary system. The mobile system can be equipped
with up to 8 channels and directly connected to a notebook and integrated
into a suitcase. The power supply can be effected from a 12V DC car
cigarette lighter connector. The system is vibration protected; shock-proof
and has a wide operating temperature range. Our stationary system
is mounted in a 19" rack cabinet and equipped with mobile car antenna
or mast-mounted antenna. The cellular radio frequencies are fixed
within 900 and 1800 MHz range; 850 and 1900 MHz are available optionally.
The monitoring and decoding of cellular telephone networks data streams
is based on the CDMA protocols.
Specifications:
Monitoring of radio frequency cellular channels within a range
of 900 and 1800 MHz.
Cell sites data stream processing
Encrypted cellular systems tracking with a priority to unknown
keys
Real-time data stream decoding and decrypting
Decrypting from ciphering mode A5/2
Decrypting from ciphering mode A5/1, if key number is known
Hopping and permanent channels acceptable
Automatic selection of indicated cellular phones for control
Advanced subscriber selection system (by PLMN number, IMSI,
TMSI keys, mobile user location, operator ID, cell site ID,
cell phone model, etc...
Selection possibility by distance from cell to target phone
Selection mode by class mark of target phones
Automatic TMSI and KC tracking
Cell sites database for mobile phone whereabouts tracking
Possibility of total monitoring (call by call) with common
selection
Automatic trace to "hand off" channel
Automatic or manual control of the receivers
Fully automatic phone call recording
Events and messages filtering system
SMS and supplementary service tracking (with national alphabets
support)
Recording and storage of all information on PC hard disk or
external storage
Control for receiver's state and target lists available
Built-in database control for current voice archive files
access
24-hours per day continuous work
Price: On Request
|
Electromax International, Inc.
