Rapiscan TVS - Truck Validation System



Description

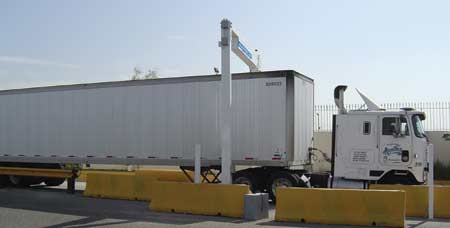

The Rapiscan TVS is a very reliable, high volume, and low cost system for screening empty trucks and verifying contents. The TVS is available in three configurations: 4100L, 4100M, and 4100H. See table below for specifications.

    Features:

    • System can be tailored to suit each customer's needs and specific applications
    • High throughput system - can scan up to 120 trucks per hour
    • Small Footprint
    • Can inspect a wide range of vehicles
    • Can be operated from a remote location
    • Only needs one operator
    • Images can be transferred to a central location
    • Fixed-site or easily relocatable designs



Click HERE to view the TVS movie. Windows Media Player required.

Specifications

Resolution (at center of object scanned) 4100L: 40mm; 4100M: 25mm; 4100H: 13mm
Penetration 4100L: 60mm; 4100M: 120mm; 4100H: 175mm steel
Throughput 2-3 trucks per minute
Scan Speed 2 miles per hour average (with speed correction)
Power Requirements 120 V/60Hz, 30A. (220 V/50Hz optional)

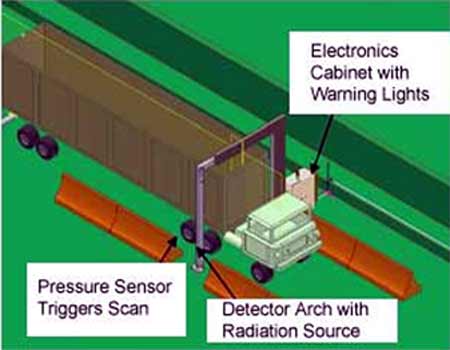

Detector Array Folded detector array for total truck imaging without corner cutoff
Detector Tower Height 4.5 meters
Detector Width 4.1 meters
Target Scan Size Typical truck size: 2.8m (wide) X 4.4m (height)
Lowest Scan Point 12 inches above ground
Source Cobalt-60 or Cesium-137
Features

(Apply to all TVS models)
Real-time image scrolling/display of full truck License plate snapshot with every image
License plate recognition capability Source to detector scan plane is offset by 10 degrees to allow viewing of hidden compartments
Speed Correction Black/White Inverse
Lighter/Darker/High Penetration Pseudo-color, Crystal ClearTM
Zoom (10X) Histogram
Automatic system calibration Printing of image and license plage
Image archiving on CD-RW Traffic lights to automatically control traffic
Accept/Reject decision to direct traffic Remote viewing supervisor station
CCTV Surveillance system (Optional) Radiological detection




Price: Available Upon Request
