Rapiscan GaRDS - Gamma Radiographic Detection System

Electromax International, Inc.

Rapiscan GaRDS - Gamma Radiographic Detection Sytem

Description

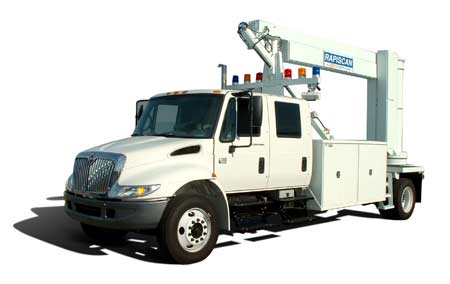

The Rapiscan GaRDS is a highly advanced, self-contained, mobile inspection system for screening trucks, cargo containers and passenger vehicles for contraband and explosives.

Inspection throughput of up to 30 trucks with containers per hour
Complete imaging of cars and trucks with no corner cutoff of containers
Designed for all weather conditions
Designed to travel on local and international roadways without special permits or drivers' licenses
Modular design enables system to be mounted on a domestically available truck chassis
Operator's compartment is within an extended cab, heated, air-conditioned, and environmentally sealed

Specifications

Resolution		.8cm (8mm) at center of object scanned
Penetration		175mm steel
Throughput		1-3 trucks per minute
Scan Speed		2 miles per hour average
Power Requirements		120 V/60Hz, 30A. (220 V/50Hz optional) Power transformer to accommodate variations in AC line
Detector Array		Folded "L" shape for total truck imaging in one pass
Maximum Scan Height		4.8 meters
Maximum Scan Width		4.1 meters
Target Scan Size		Typical truck size: 3m (wide) X 4.5m (high)
Source		Cobalt-60
Weight		Less than 26,000 lbs

Features

Zoom (10X)		Histogram
Automatic system calibration		Printing of image
Image archiving on CD-RW		On-board generator
Pseudo-color

Price: Available Upon Request
